Rocket Stove Pizza Oven Cut Files

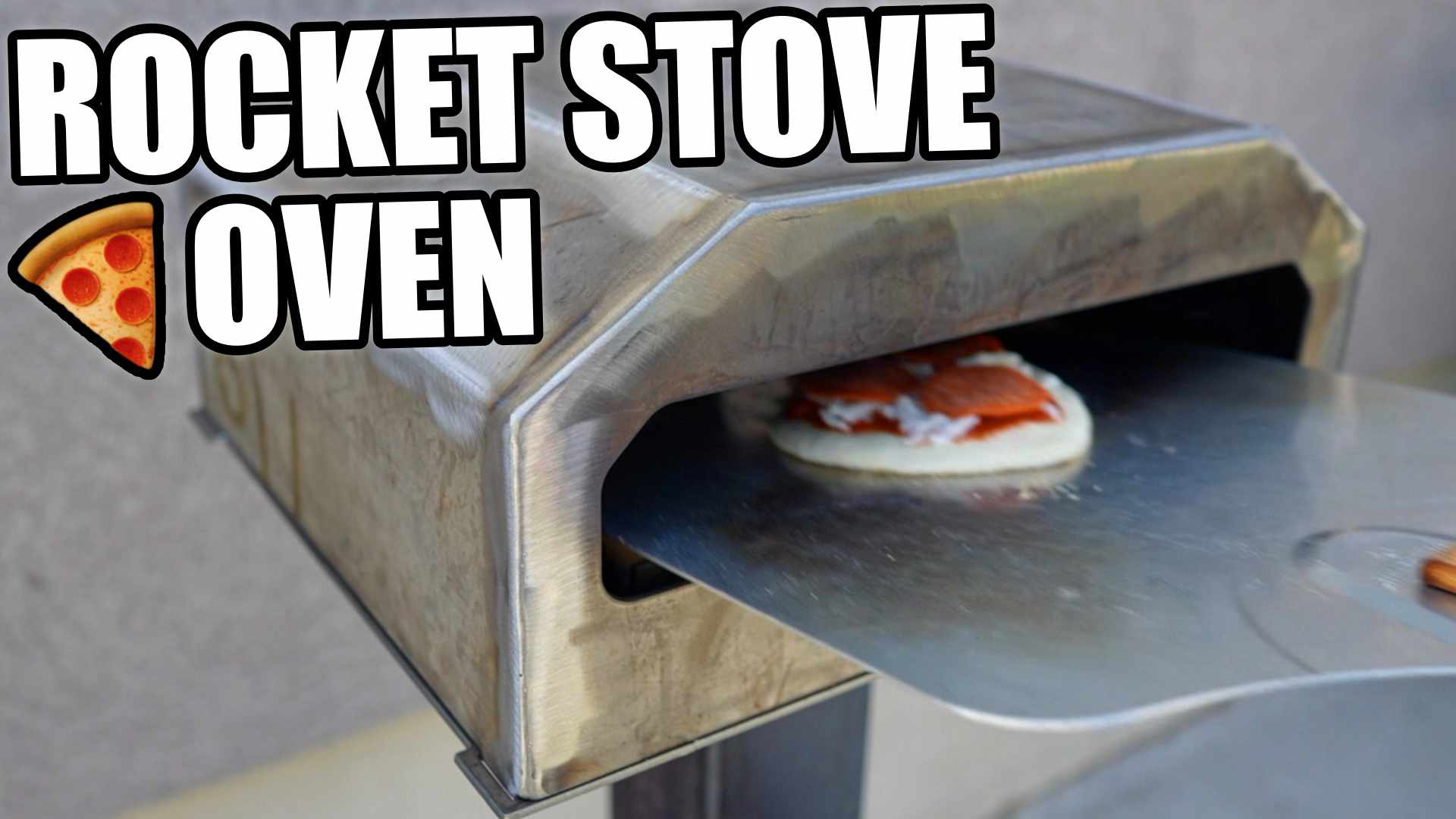

These are the DXF cut files for the prototype Rocket Stove Pizza Oven I built in this YouTube video: https://youtu.be/c199JILGVNo . This is not a full set of plans like other projects on the site, just the cut files for the sheet metal parts. The box fit together well and accomodates a 12" square pizza stone that you can buy on Amazon.

My particular rocket stove design would heat the stone to 620 degrees F and the inside of the oven to 450 degrees F, which was enough to cook pizza, but not as hot as I would like it to be. I'm going to keep working on the rocket stove design. For reference, my rocket stove was made from 4" square tubing with s 22" long main tube with side vents and a 12" long feed tube entering at 45 degrees.

All parts were cut from 11g (1/8" or 3mm) thick material. The total material used is approximately 10 square feet. File names with a (2) in them indicate that 2 pieces are needed for the build.

A download link for the cut files will be emailed to you immediately after purchase.

I'd love to see what you build with them!

-Tim
