Fabrication Jack Plans and Cut Files

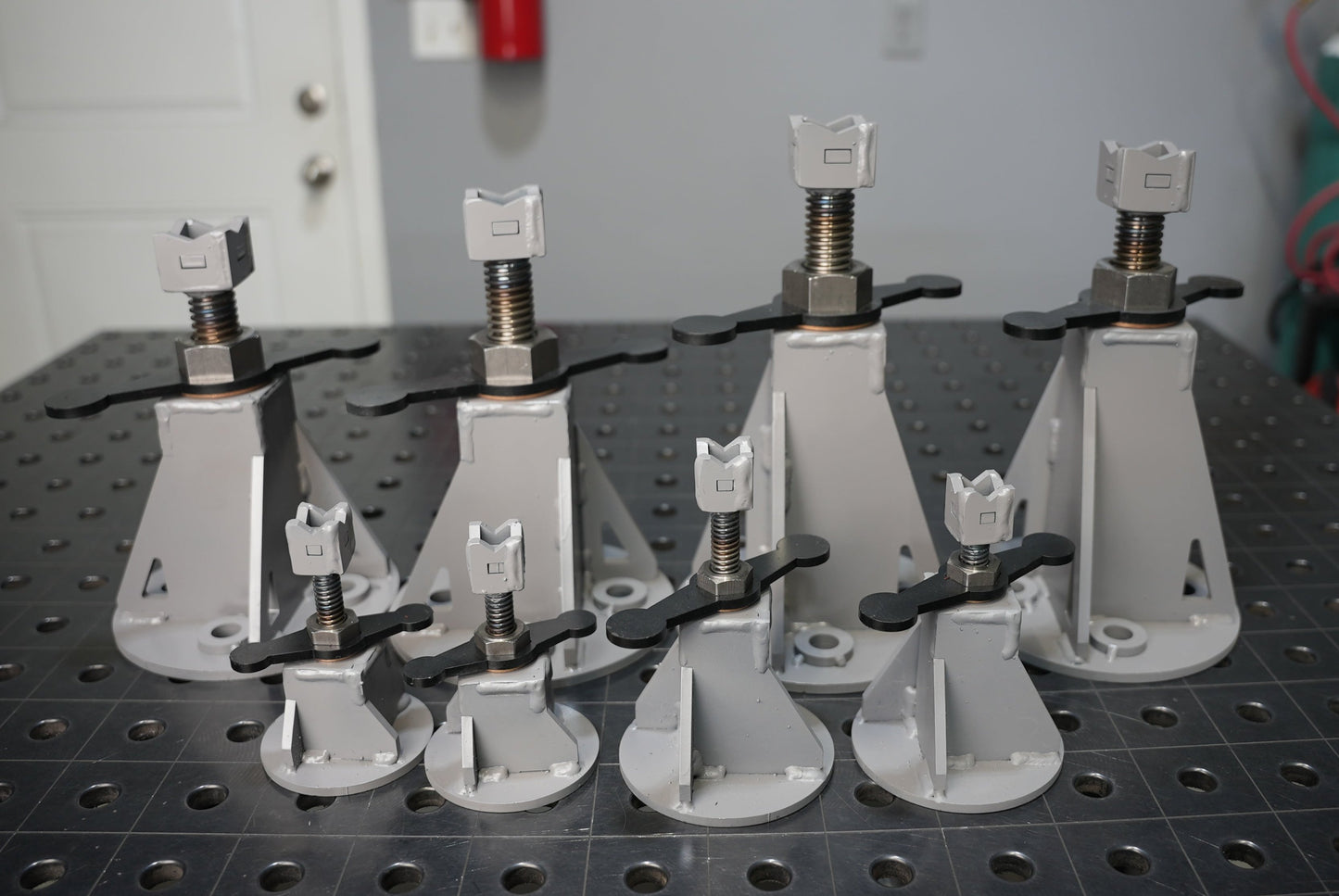

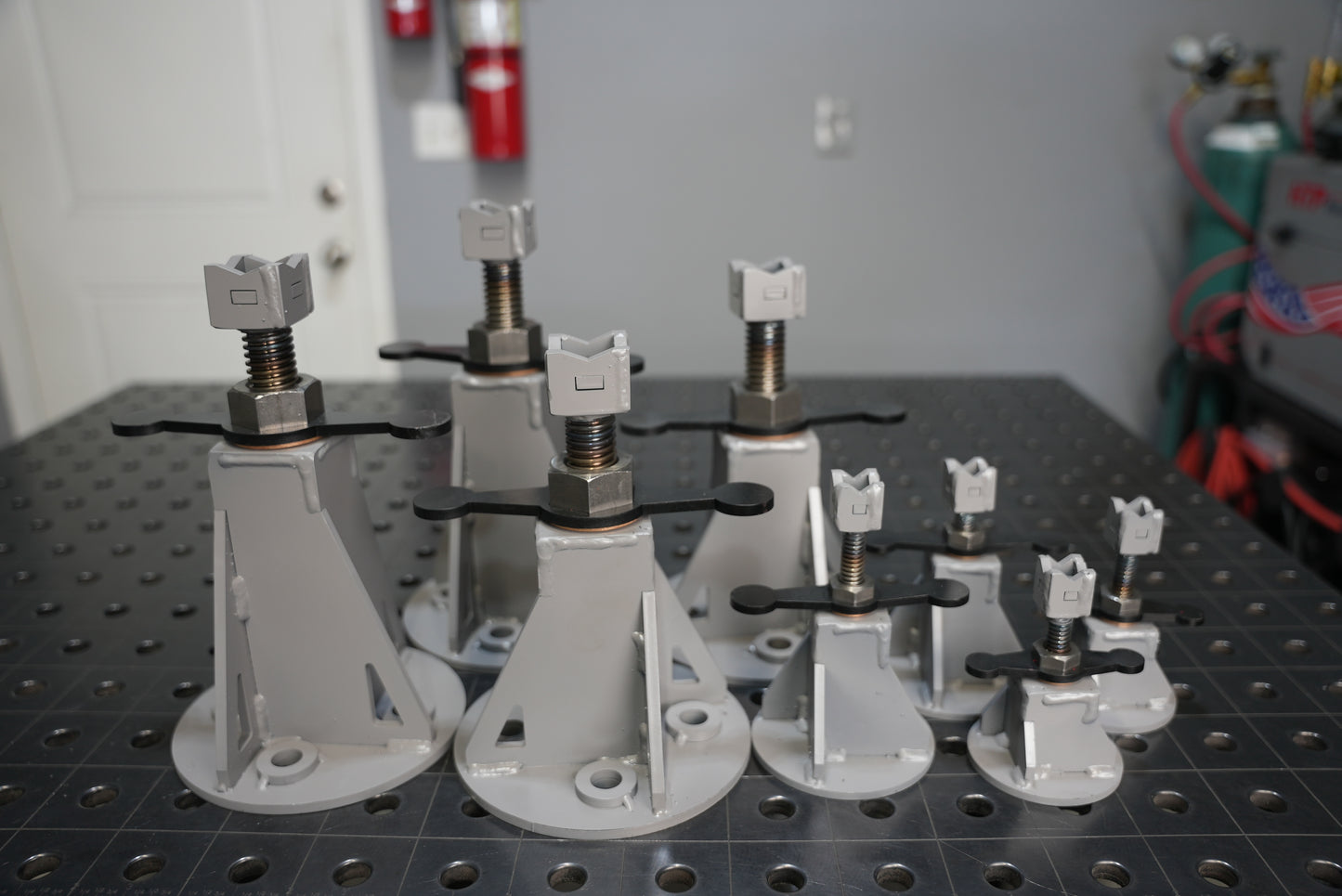

Build these extremely useful Acme Screw Jack Stands for metal fabrication with these plans for 4 different sizes of jacks. CNC cut files (dxf) for all 4 sizes and a 15 page detailed pdf with step by step instructions will be available for immediate download after purchase. The plans include a detailed list of specialty hardware with links and part numbers.

All measurements are in inches, at this time there is not a metric version available. Look out for additional plans with metric versions in the future.

Minimum set of tools to complete this build:
-MIG or TIG welder
-Angle grinder w/ cutoff wheel and grinding wheel
-Measuring tape
-Optional: chop saw or bandsaw
-Optional: welding table
-Optional: CNC plasma table

Approximate cost to build:
The cost will vary significantly depending on how many you are building and where you source materials. When ordering all components, including custom laser cut plates, online in relatively small quantities (2-4 stands at a time), the total cost is approximately $75 to build each 1" acme screw stand and $40 to build each 1/2" acme screw stand. They could be designed to be cheaper, but I'd rather pay more to over-build something that will last.

These are not safety jack stands and are not intended to support vehicles or any other load with people working underneath. While they are very heavy duty, this design has not been tested or safety certified as a load-supporting device. The user of the plans and stands assumes all risk.

Fine Print:

Purchase of these plans provides the license to build up to 10 units for personal or business use. These plans may not be redistributed, reproduced or sold without the express written consent of Built Tools LLC.

Metalwork can be dangerous. Always follow all instructions in the owners manuals for your tools and do not perform any metalworking task that you are not capable of performing safely. When unsure, consult professionals licensed in your area for guidance.

All use of the tools/equipment/projects produced by using these plans is at your own risk. Additional guards and safety features beyond what is detailed in these plans may be required for safe operation. By proceeding and using these plans, you agree to release Built Tools LLC and its members from any and all liability for the outcome of such use.
